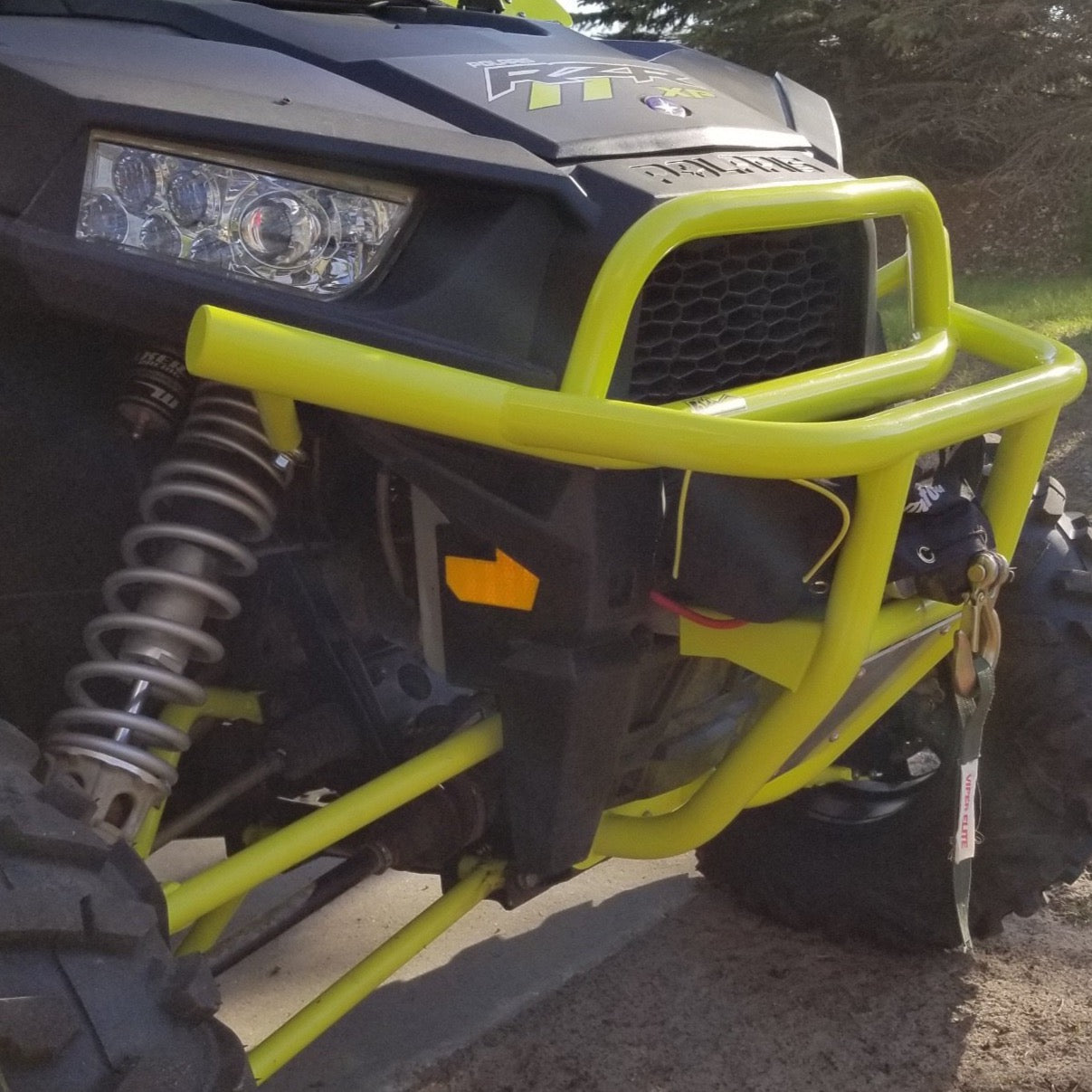

Our Polaris RZR EXO Winch Bumper was designed to be extremely rigid without sacrificing style. We worked hard to ensure a perfect fit and a no struggle/ no modification installation.
This bumper mounts to the factory locations as well as tying into the frame with the included upper clamps. The winch mounting plate will accept both wide spool and standard winch patterns. (Shown here with optional Warn ProVantage 4500S -90451)
Will fit the following vehicles:
15+ RZR S 900
15+ RZR XP 1000
16+ RZR S 1000
May work on other models, call to verify.
-1020 DOM 1.75" x .095" wall and 1.5" x .095 wall tube.
-Winch and lower plate 1/8" cold rolled & Laser cut steel.
-3/8" thick lower tie down plate

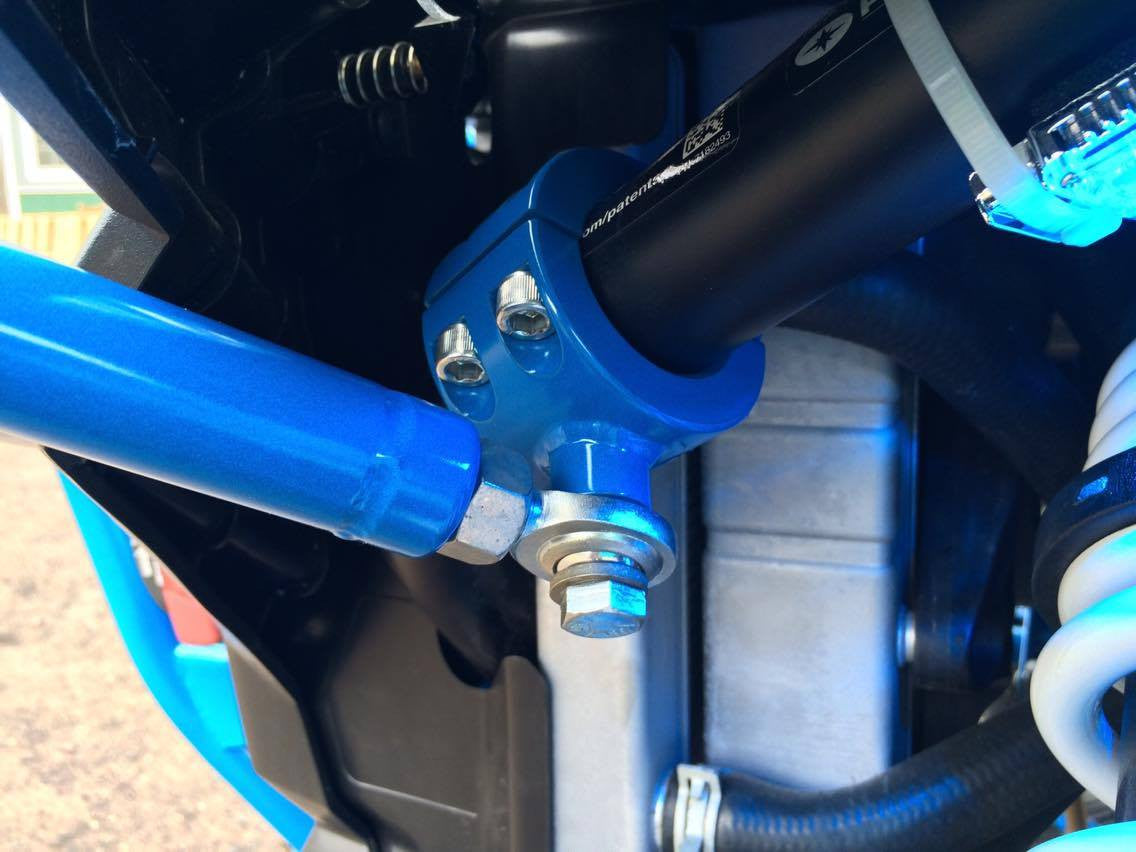

-CNC machined clamps for upper bumper support.
-Removable 1/8" brushed aluminum skid plate.
-Stinger opening will support up to a 6" LED Bar.
-All Powder Coated items are sandblasted.
* ALL mounting clamps and hardware are included!
CAD designed, created, built, and TIG WELDED in house using 100% USA made materials AND Equipment!
